Here’s Everything You Need To Know About Czochralski Growth

What Is Czochralski Growth?

Czochralski growth, also called the Czochralski method or technique, is a method for growing high-quality single crystals of various materials. It finds wide application in the semiconductor industry, but can also be used to create crystals of metals, gemstones and more.

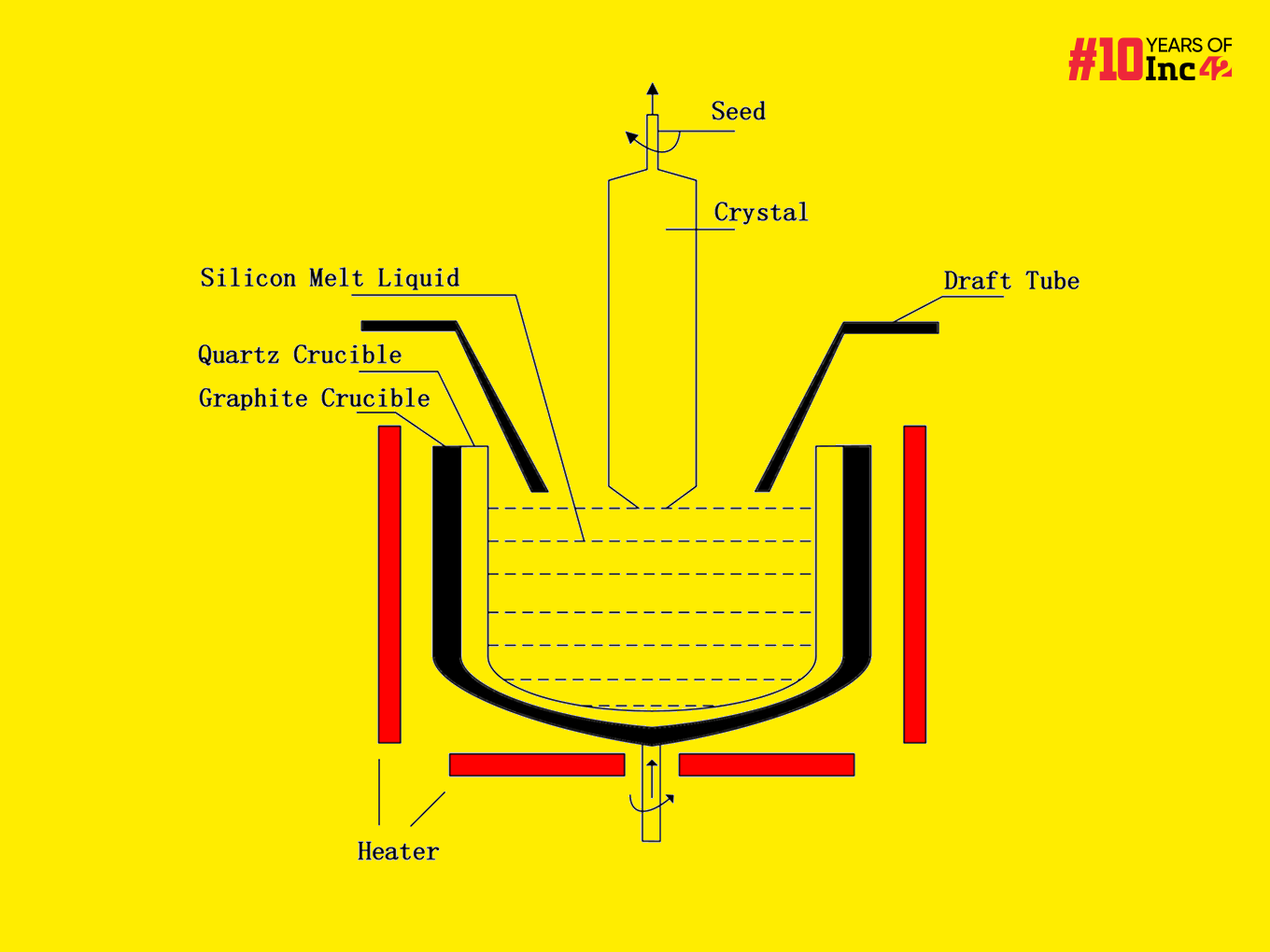

The process starts with melting the desired material’s crystal in a quartz crucible. A small seed crystal, with the desired crystallographic orientation, is then dipped into the molten material. By slowly pulling the seed upwards while simultaneously rotating it, a thin layer of liquid is created around the seed. The entire process, called crystal growth, typically occurs in an inert atmosphere to prevent contamination.

Through careful control of the temperature, pulling speed and rotation rate, a large, high-quality single crystal can be grown from the seed. This crystal will inherit the same crystallographic structure as the seed crystal.

How Does Czochralski Growth Work?

Czochralski growth, also known as crystal pulling, works by utilising the concept of heterogeneous nucleation to initiate the solidification of a molten material onto a seed crystal, ultimately resulting in the formation of a larger, high-quality single crystal. The following is a brief breakdown of the process:

• Melt Preparation: The desired material (for instance, silicon) is placed in a high-purity quartz crucible and heated above its melting point using induction or resistance heating. The quartz crucible is chosen due to its superior thermal stability and minimal chemical reactivity with the melt at high temperatures.
• Seed Crystal Introduction: A high-purity, single-crystal seed with a defined crystallographic orientation is dipped into the molten material. This seed serves as a substrate for the growth of the new crystal, dictating its crystallographic structure.
• Pulling & Rotation: The seed crystal is subjected to a controlled vertical pulling while being simultaneously rotated around its axis using a growth chamber rotation mechanism. This creates a well-defined molten zone around the seed-melt interface.
• Crystallisation: As the seed is pulled upwards, the molten material near the seed-melt interface experiences a decrease in temperature, triggering crystal nucleation. The crystal growth then proceeds via a layer-by-layer deposition of atoms onto the seed crystal, following the same crystallographic orientation as the seed due to the templating effect.
• Temperature Gradient Control: A precisely controlled temperature gradient is essential throughout the growth process. The melt temperature (Tm) needs to be maintained slightly above the liquidus (temperature above which a material is completely liquid, Tl) to ensure sufficient melt availability for crystal growth. However, an excessively high Tm can lead to unwanted phenomena such as evaporation or decomposition of the material. Conversely, a temperature profile that is not sufficiently above Tl can hinder crystal growth or cause the formation of polycrystalline defects.
• Rotational Control: The implementation of a controlled seed rotation (ω) plays a critical role in maintaining a uniform melt distribution around the seed-melt interface. This mitigates the development of thermal and compositional striations within the growing crystal, ultimately enhancing crystal quality.
• Solidification: By meticulously regulating the pulling rate (vpull), rotation rate (ω), and temperature gradient (dT/dz), a large, high-quality single crystal can be progressively solidified from the melt. The solidification process is carefully monitored to ensure a defect-free crystal with the desired diameter and electrical properties.
• Inert Atmosphere: The entire Czochralski growth process is typically conducted within a precisely controlled inert atmosphere, such as high-purity argon. This prevents contamination of the melt and the growing crystal by reactive gases like oxygen or nitrogen, which can significantly deteriorate crystal quality.

Why Is Czochralski Growth Used To Manufacture Semiconductors?

Czochralski growth is the preferred method for manufacturing semiconductors due to several key factors that contribute to the creation of high-quality single crystals:

• High Purity: The process minimises contamination within the crystal, a crucial aspect for semiconductors as even tiny impurities can significantly alter their electrical properties.
• Single Crystalline Structure: Czochralski growth yields a single crystal, meaning the atoms throughout the entire crystal are arranged in a highly ordered, repetitive pattern, essential for consistent and predictable electrical behaviour in semiconductors.
• Precise Doping Control: The Czochralski process allows for precise control of dopant introduction during the growth stage, enabling the creation of semiconductors with tailored electrical characteristics.
• Scalability: The technique can be scaled to produce crystals with diameters exceeding 300 mm, which is crucial for modern high-density ICs.
• Cost-Effectiveness: Czochralski growth offers a balance between cost and quality compared to alternative techniques. It is a well-established and reliable process that delivers consistent results, making it a suitable choice for large-scale semiconductor production.

What Are The Disadvantages Of Czochralski Growth For Crystal Growth?

While Czocharlski Growth is a well-understood and widely-used process, it still has its benefits and drawbacks worth considering. While the context of its usage for manufacturing semiconductors has been mentioned above, it also presents some challenges:

• Impurities: While offering good purity control, the process isn’t perfect. The crucible and other elements can introduce impurities into the crystal, impacting its quality for some applications, especially those requiring extremely high purity.
• Crystal Defects: Despite careful control, crystal defects like striations (variations in impurity concentration) can occur due to temperature fluctuations or uneven growth. These defects can affect device performance.
• Limited To Certain Materials: Czochralski growth isn’t suitable for all materials. Some materials decompose at high temperatures or react with the crucible material, making the process unsuitable.
• Size Limitations: While offering scalability, there is a practical limit on crystal size due to factors like melt stability and stress management during growth.
• High Initial Investment: Setting up a Czochralski growth system requires significant initial investment in equipment and expertise.
